Motorola VX264 VHF

VX260 portable radio features

Enhanced Audio Output
Excellent Audio performance allows for better message clarity so you can be heard loud and clear in all situations.

Expanded Interoperability
The VX260 Series boasts abundant signaling options such as MDC1200^®, FleetSync^®, DTMF, 2-tone and 5-tone capabilities, providing seamless integration into a mixed fleet.

Safety Not Sacrificed
Emergency alert can be programmed to instantly notify help with a press of a button. Lone Worker is a built-in timer that requires the user to reset at a predetermined interval. If not reset, the radio automatically switches to Emergency mode to alert help. An ideal solution for supervisors to monitor the safety status of radio users working alone. VOX capable with accessory.

Universal Battery System – One Size Fits All
The Universal Battery System for Vertex Standard portable radios takes energy interoperability to a new level by utilising a single charger base to support multiple radio series when used with designated UNI batteries. Eliminate equipment clutter and confusion by consolidating down to one battery and charging platform and increase your productivity.

Choose the Right Model to Match Your Need

VX261

• Non-display radio
• 16 channels / 1 group
• 2 custom-programmable keys
• Superior audio quality

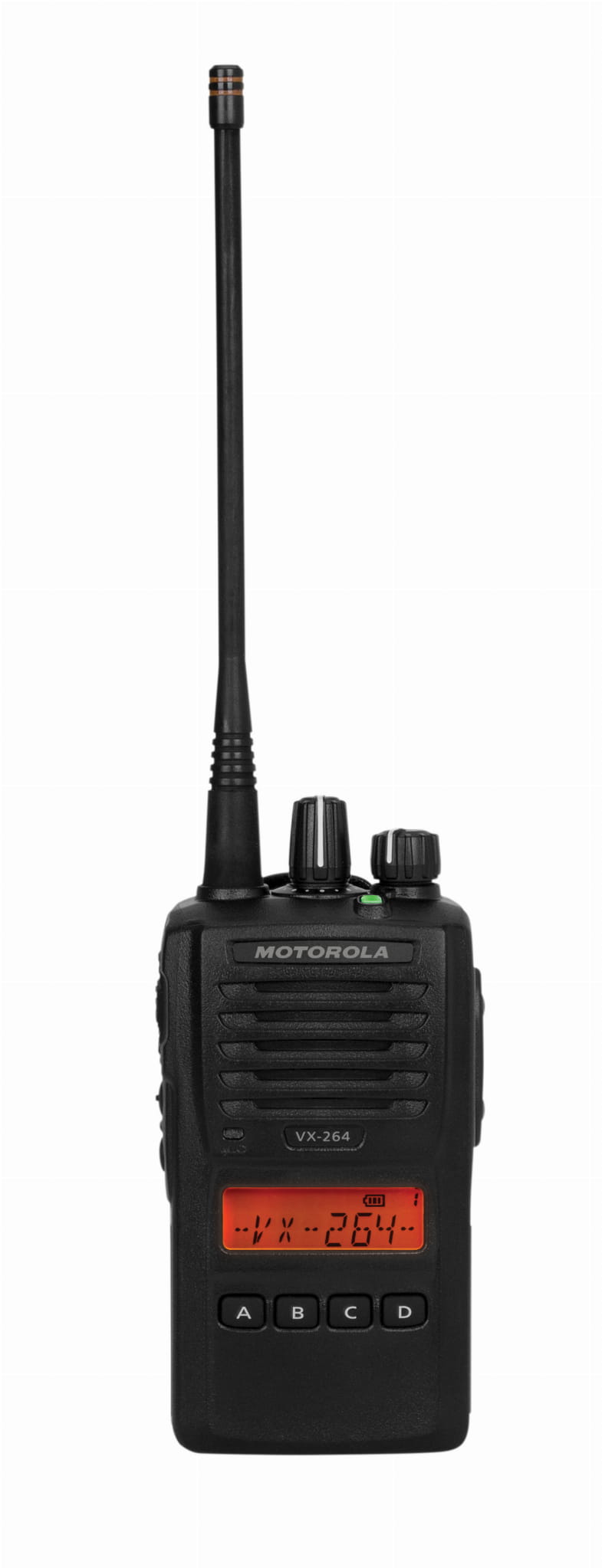

VX264

• Display radio
• 128 channels / 8 groups
• 6 custom-programmable keys
• Embedded voice inversion encryption
• Superior audio quality

Additional Features

• 16 / 128 channels (VX261/VX264)
• 2 or 6 programmable keys (VX261/VX264)
• 8-Character alphanumeric display (VX264)
• 700 mW Internal Speaker
• MDC1200^® ANI Encode
• FleetSync^® ANI Encode
• ANI Decode (VX264)
• Emergency Encode/Decode (VX264)
• Call Alert Encode/Decode (VX264)
• Radio Check Encode/Decode (VX264)
• Sel Call Encode/Decode (VX264)
• DTMF ANI Encode
• 2-Tone Encode/Decode
• 5-Tone Encode/Decode
• CTCSS / DCS Encode and Decode
• Emergency
• Lone Worker
• Multiple Scan Options
• ARTS^™
• Voice Inversion Encryption (VX264)
• Internal VOX (when used with VOX accessory)

VX260 Series portable radio specifications

General Specification

Frequency Range
VHF: 136 - 174 MHz
UHF: 403 - 470 MHz

Dimensions (H x W x D) with FNB-V133LI-UNI
109.2 x 58.4 x 32.3 mm

Weight (Including battery, Antenna, Belt clip)
FNB-V133LI-UNI
VX261 VHF: 288g
VX261 UHF: 285g
VX264 VHF: 299g
VX264 UHF: 296g

FNB-V134LI-UNI
VX261 VHF: 322g
VX261 UHF: 319g
VX264 VHF: 333g
VX264 UHF: 330g

FNB-V136-UNI
VX261 VHF: 380g
VX261 UHF: 377g
VX264 VHF: 391g
VX264 UHF: 388g

Display
VX261: No
VX264: 8 Character Alphanumeric

Power Output
5/1 W

Battery life
FNB-V133LI-UNI Lithium Ion:
10.8 h (8.8 h w/o saver)

FNB-V134LI-UNI Lithium Ion:
19 h (15.5 h w/o saver)

FNB-V136-UNI NiMH:
9.4 h (7.7 h w/o saver)

Channel Spacing
12.5/20/25 kHz

Audio Output
700 mW @ 16 Ohms (Internal) / 500 mW @ 4 Ohms (External)

Number of Channels
VX261: 16
VX264: 128

Number of Groups
VX261: 1
VX264: 8

Programmable Buttons
VX261: 2
VX264: 6

PC Programming
CE150

Radio to Radio Cloning
Yes

IP Rating
55

Power Supply Voltage
7.4 V DC±10 %

Operating Temperature Range
–30° C to +60° C

Frequency Stability
±2.5 ppm

RF Input-Output Impedence
50 Ohms

Receiver Specification:

Sensitivity
20 dB SINAD - 2 dBuV

Adjacent Channel Selectivity
60 / 65 dB (12.5 kHz / 25 kHz)

Intermodulation
65 dB

Spurious Image Rejection
70 dB

Hum and Noise
40 dB

Audio Output (5% THD)
700 mW @ 16 Ohms (Internal) / 500 mW @ 4 Ohms (External)

Audio Distortion
< 5%


Transmitter Specification:

Output Power
5 / 1 Watt

Modulation
11K0F3E / 14K0F3E  / 16K0F3E

Maximum Deviation
±2.5 kHz / ±4.0 kHz / ±5.0 kHz

Conducted Spurious Emissions
70 dB below carrier

FM Hum and Noise
40 dB

Audio Distortion (@1 kHz)
< 5 %

VX-260 Series portable radio accessories

Accessories

Batteries

• FNB-V133LI-UNI 1380 mAh Li-Ion
• FNB-V134LI-UNI 2300 mAh Li-Ion
• FNB-V136Ni-MH 1200 mAh

Chargers

• VAC-UNI Single Unit Charger
• VAC-6058 MUC Charger
• VCM-5 Vehicular Charger Mounting Adaptor (UNI Charger/Batteries)

Antennas

• ATU-6A 400-430 MHz
• ATU-6D 450-485 MHz
• ATU-6DS 450-485 MHz
• ATU-6F 490-512 MHz
• ATV-6B 150-163 MHz
• ATV-6C 161-174 MHz
• ATV-6XL Untuned VHF
• ATV-8A 134-150 MHz
• ATV-8B 150-163 MHz
• ATV-8C 162-174 MHz

Cases

• LCC-261 Leather Case, Belt Loop (FNB-V133LI)
• LCC-261H Leather Case, Belt Loop (FNB-V134LI)
• LCC-261S Leather Case, Swivel Belt Loop (FNB-V133LI)
• LCC-261SH Leather Case, Swivel Belt Loop (FNB-V134LI)

Audio Accessories

Speaker Microphones

• MH-360S Compact Speaker Microphone with 3.5mm Audio Jack
• MH-450S Speaker Microphone with 3.5mm Audio Jack
• MH-45B4B Noise Cancelling Speaker Microphone with 3.5mm Audio Jack

Headsets/Earpieces

• MH-37A4B-1 Earpiece Microphone
• VH-150A VOX capable lightweight headset,
• Behind-the-Head
• VH-150B VOX capable lightweight headset, Over-the-Head
• MH-100 Receive Only Earpiece
• MH-101A4B Single Wire Surveillance Kit
• MH-102A4B Two-Wire Surveillance Kit

Programming Equipment

• FIF-12 USB interface for PC programming
• FRB-6 Tuning Interface Box
• CT-160 Connection Cable
• CT-106 FIF-12 to Radio Cable
• CT-27A Radio to Radio Cloning Cable
